RefreshIndicator comes to help!

Evan Fang

Dec 20, 2020·4 min read

It’s an useful behavior on the mobile app that when we scroll to the top of a vertical scroll view, and overscroll, a refresh indicator will drop down, then the new data updates after we release the control. Flutter provides a handy widget called RefreshIndicator for this purpose.

As the official documentation says, RefreshIndicator is a widget that supports the Material “swipe to refresh” idiom. Today, we’re going to learn how to implement it in our ScrollView.

Table of Contents

1. Implement RefreshIndicator in ListView.
2. Implement RefreshIndicator in CustomScrollView.
3. Cupertino style of refresh indicator in iOS.
4. Known issues with WebView.

Implement RefreshIndicator in ListView

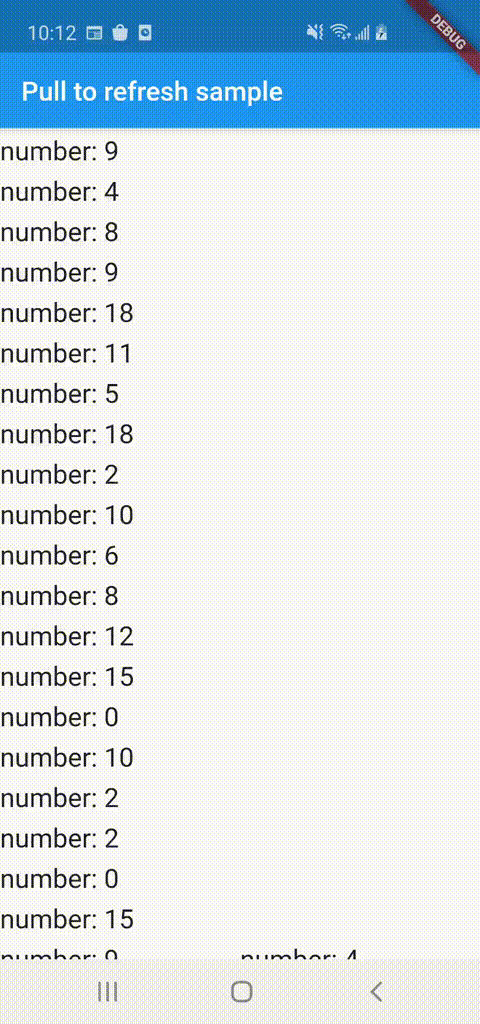

Let’s try to display 100 random numbers which are generated from Random().nextInt() at the beginning. After pulling to refresh, a new list of random numbers will be regenerated and display on the screen.

Follow the steps to achieve it:

1. Wrap your ListView into RefreshIndicator like L36 does.
2. Provide a future task to the parameter onRefresh in L37. The purpose of the future task is to fetch the new data, then refresh the widget.

Implement RefreshIndicator in CustomScrollView

RefreshIndicator can also be used for CustomScrollView. As the following code, we create a CustomScrollView with a SliverList and a SliverGrid. You can refer to my previous post for the CustomScrollView details.

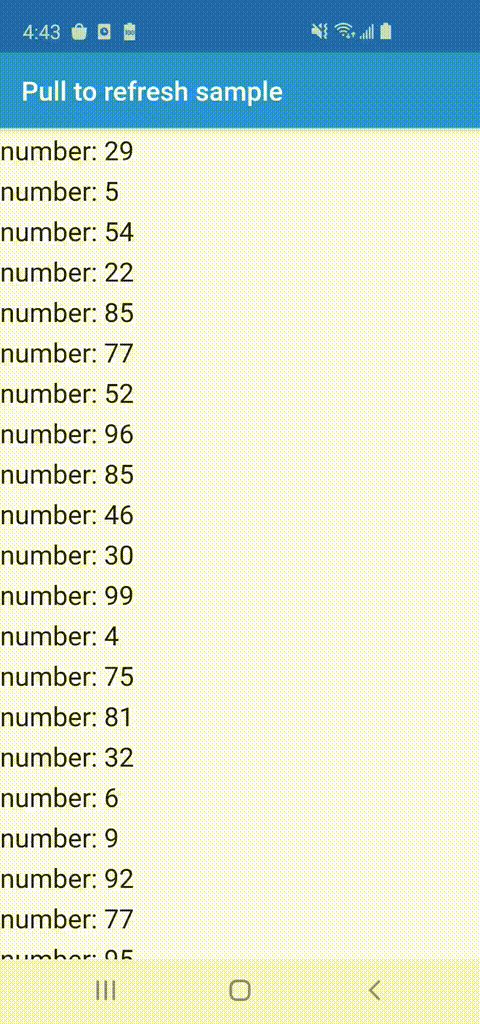

The main function is in L36 to L44, we wrap a CustomScrollView into a RefreshIndicator. Then we can achieve the purpose of pulling to refresh the whole ScrollView. It is quite easy, right?

Parameters

There are also some parameters we can use to change the UI.

• displacement
  The distance from the child’s top or bottom edge to where the refresh indicator will settle.

RefreshIndicator(
    onRefresh: _refreshRandomNumbers,
    displacement: 200.0,
    child: ListView.builder(...),
);

• color/background color, stroke width of the indicator:

RefreshIndicator(
    onRefresh: _refreshRandomNumbers,
    color: Colors.blue,
    backgroundColor: Colors.red,
    strokeWidth: 10.0,
    child: ListView.builder(...),
);

Cupertino style of refresh indicator in iOS

We can also change the style of refresh indicator to Cupertino style. CupertinoSliverRefreshControl is an iOS equivalent of the pull-to-refresh pattern. Here is the documentation:

Must be used as a sliver inside a [CustomScrollView] instead of wrapping around a [ScrollView] because it's a part of the scrollable instead of being overlaid on top of it.

According to it, the implementation will be like:

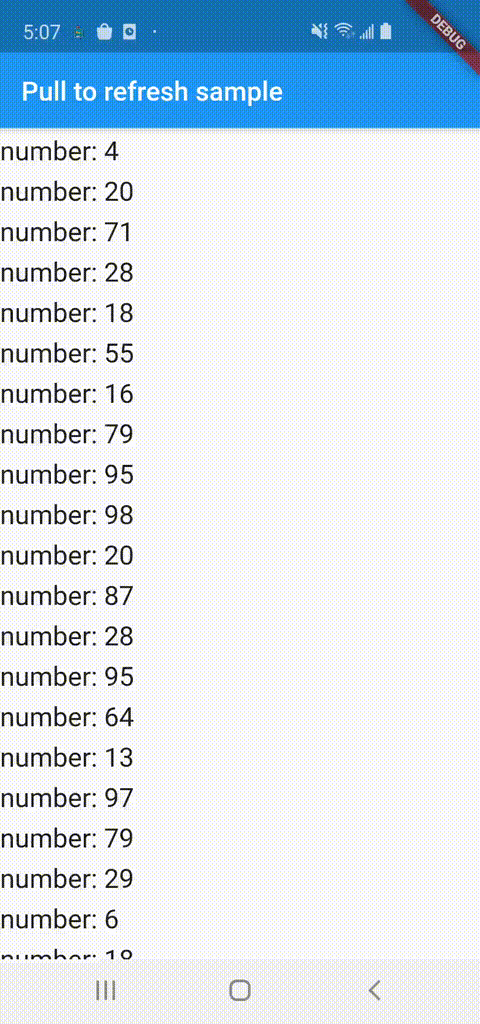

in L39, we wrap CupertinoSliverRefreshControl into a CustomScrollView. Actually, CupertinoSliverRefreshControl is a sliver widget implementing the iOS-style pull-to-refresh content control. That’s why we need to put it in the CustomScrollView. Here is what it looks like on iOS:

Everything works like a charm on iOS, however, it doesn’t work on Android directly.

Please checkout the reason and solution here:

https://github.com/flutter/flutter/issues/27977#issuecomment-464175636

This is working as intended. It’s due to the ScrollPhysics which is used on Android. iOS uses BouncingScrollPhysics which doesn't apply any boundary conditions when applyBoundaryConditions is called i.e. it allows for under/overscrolling. If you want the same effect on Android you can use BouncingScrollPhysics which will give you the an iOS feel on Android, or you can override ClampingScrollPhysics which is what Android uses.

So we can fix it by using BouncingScrollPhysics for CustomScrollView.

@override
Widget build(BuildContext context) => CustomScrollView(
      physics: const BouncingScrollPhysics(),
      slivers: [
        CupertinoSliverRefreshControl(
          onRefresh: _refreshRandomNumbers,
        ),
        _sliverListView,
        _sliverGridView,
      ],
    );

Issues

I’ve tried to implement pull-to-refresh function on the WebView, however, it didn’t seem to work. Then I found an issue on the Flutter Github about this.

https://github.com/flutter/flutter/issues/71341

RefreshIndicator or similar functionality isn’t compatible with webview_flutter.

Unfortunately, we need to wait for the Flutter team to solve it.

That’s all for today. Thank you for reading this article. Hope it helps you to learn more about how the implement RefreshIndicator in all your ScrollView. If you have any suggestions or questions, welcome to leave a comment below. See you next time 🙌.

References

• RefreshIndicator official documentation:

• An article about the details of implementing pull-to-refresh behavior:
  https://www.woolha.com/tutorials/flutter-pull-to-refresh-using-refreshindicator-and-cupertinosliverrefreshcontrol
